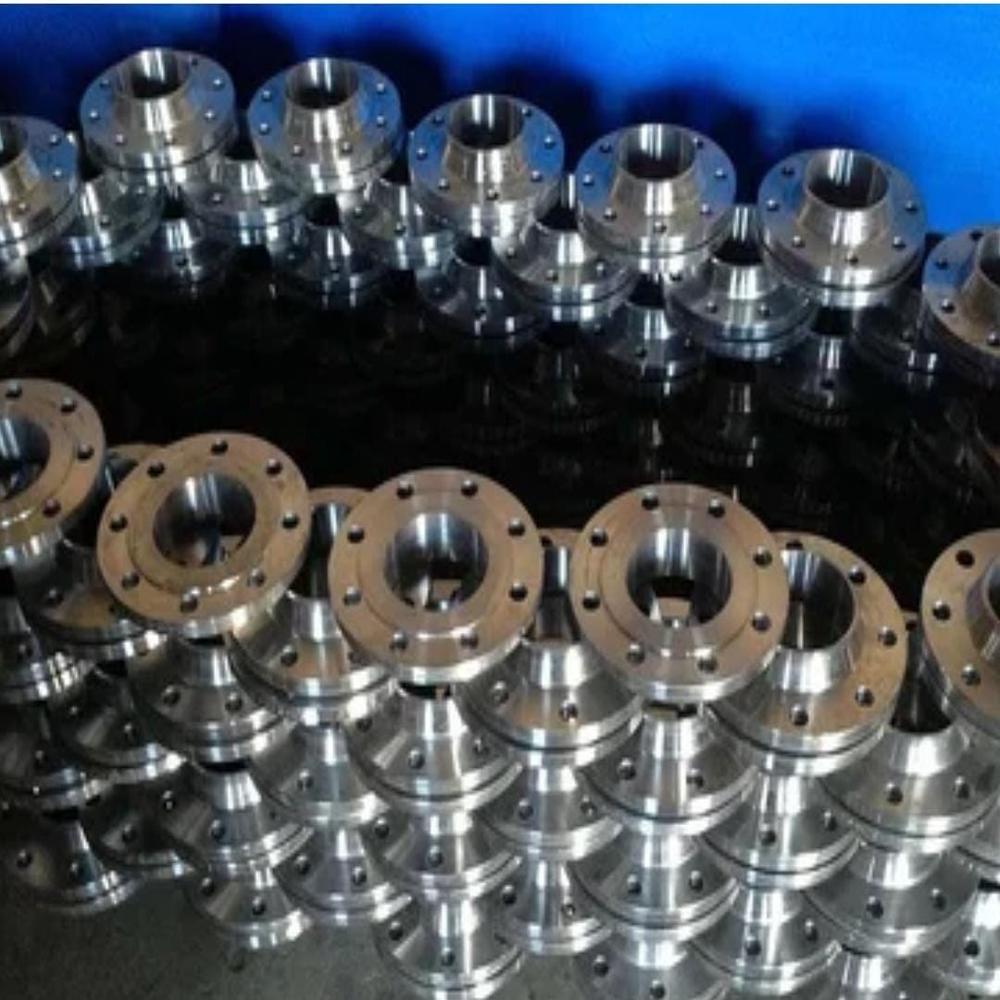

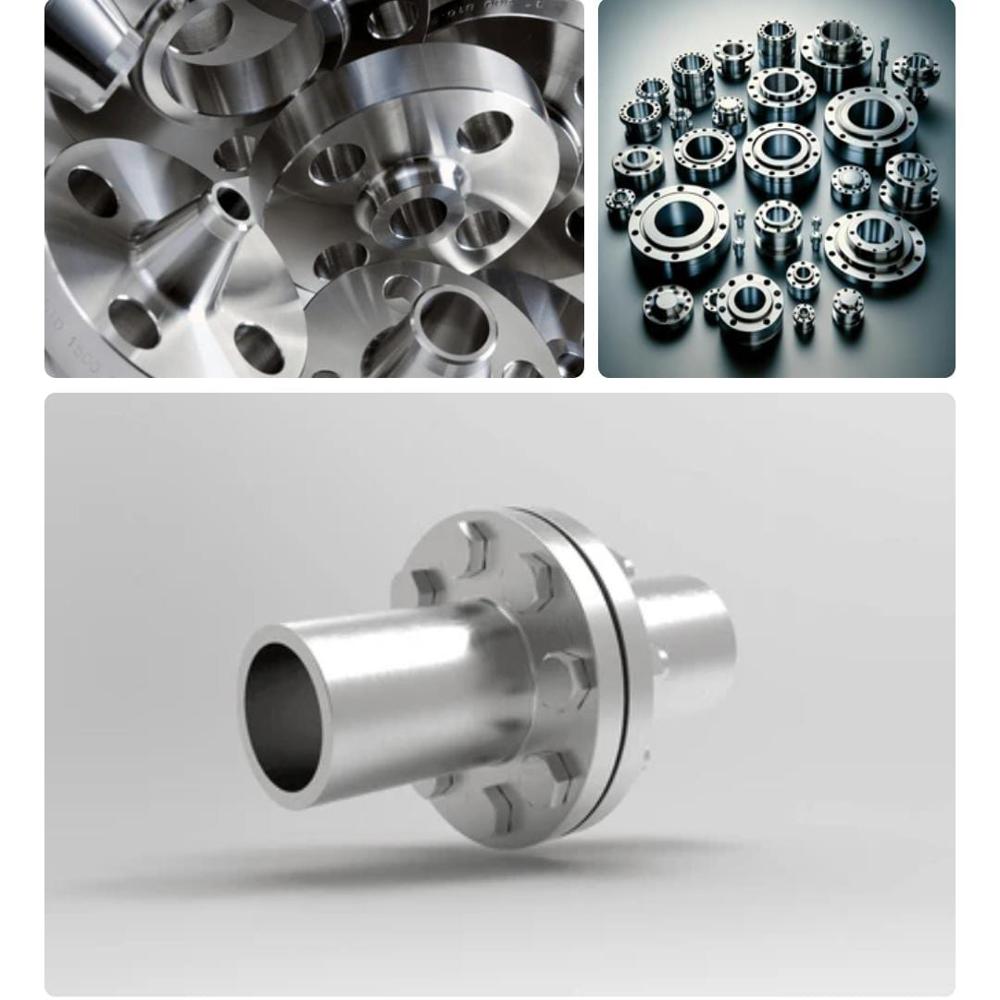

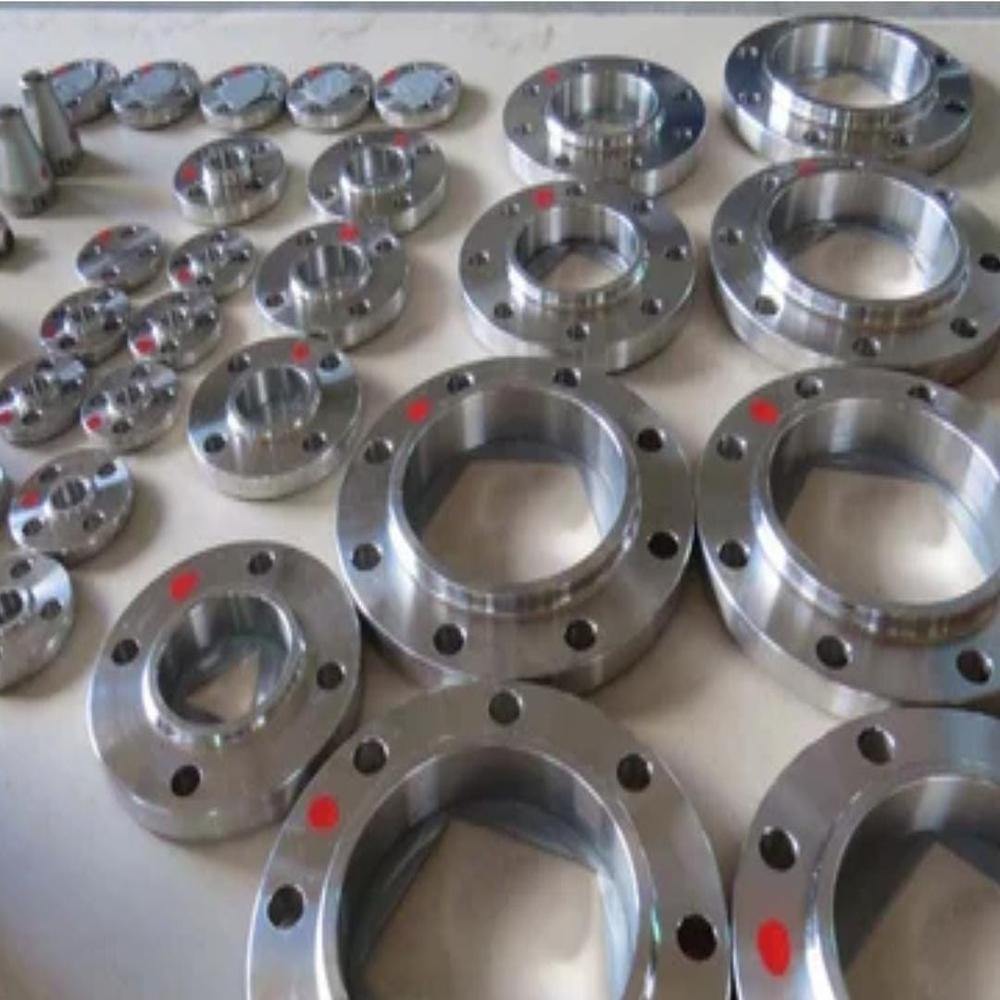

SS Flanges

• Application
• Other, Industrial pipelines, petrochemical, oil & gas, water supply, mechanical engineering

• Coating Type
• None (Plain/Polished Stainless Steel)

• Color
• Silver

• Composition
• Iron, Chromium, Nickel, Molybdenum (varies by grade)

• Corrosion Resistant
• Excellent, suitable for aggressive environments

• Diameter
• 15 mm to 1200 mm

• Dimension (L*W*H)
• Varies as per standard sizes; typically DN15 to DN1200

• Finish Type
• Bright / Polished / Matte

• Grade
• SS304, SS316, SS316L

• Hardness
• 160-220 HB

• Heat Resistance
• Yes

• Material Composition %
• Cr (18-20%), Ni (8-11%), Mo (2-3% for 316)

• Material Grade
• 304 / 316 / 316L

• Product Form
• Flange

• Product Name
• Stainless Steel Products

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• As per DIN/ANSI standards, customized sizes available

• Steel Product Type
• Other, Flanges

• Steel Standard
• Other, ASTM A182 / A240 / ANSI / DIN / JIS

• Steel Type
• Stainless Steel

• Surface
• Polished / Bright / Matte

• Tensile Strength
• 515 - 620 MPa

• Thickness
• 3 mm to 30 mm (varies by specification)

• Usage
• Pipe connections, valve assemblies, industrial plants

• Weight
• Depends on flange size and type; ranges from 0.5 kg to over 40 kg

• Application
• Other, Industrial piping systems, chemical processing, food and beverage, water treatment, and oil & gas.

• Coating Type
• Uncoated / Self-finished

• Color
• Metallic Silver

• Composition
• Cr (18-20%), Ni (8-10.5%), C ( 0.08%), Mn, Si, P, S, N balance

• Corrosion Resistant
• Excellent

• Diameter
• inch to 24 inches (customizable)

• Dimension (L*W*H)
• Customizable; standard flanges typically range from inch to 24 inches in diameter.

• Finish Type
• Polished or Mill Finish

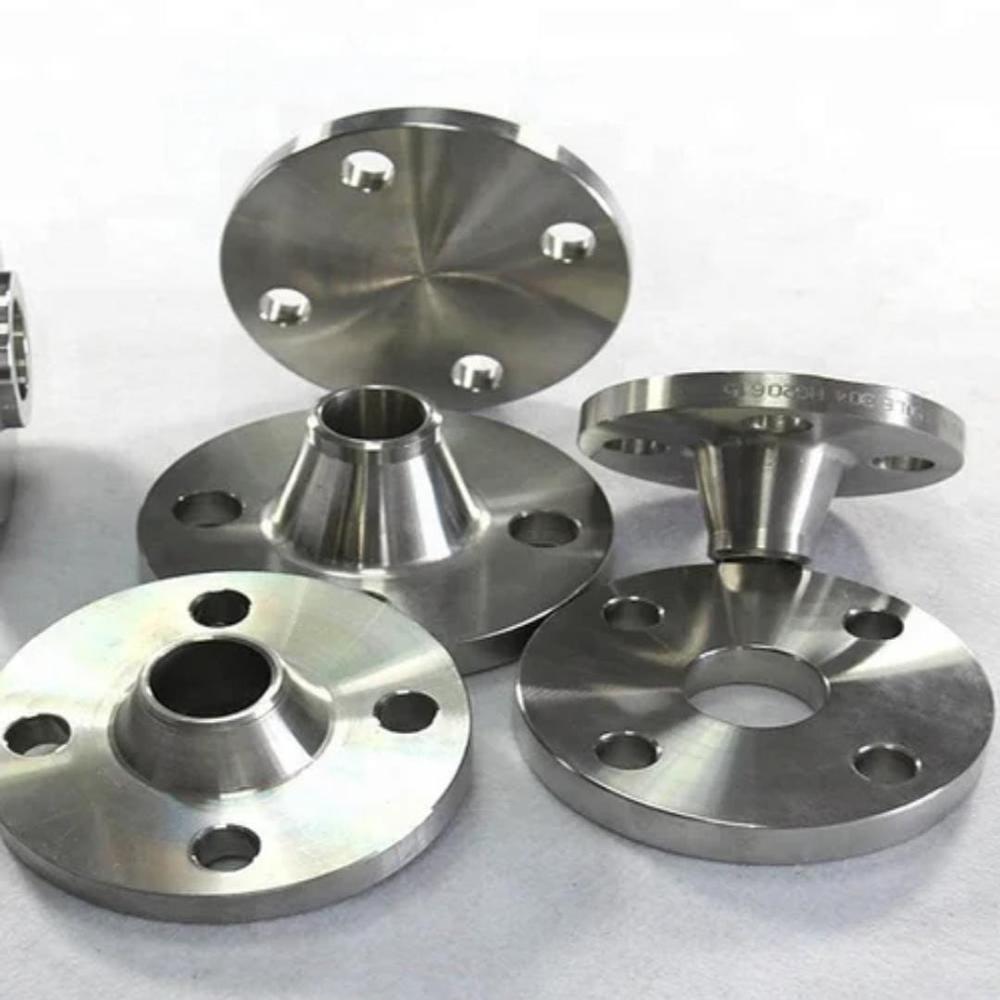

• Grade
• 304

• Hardness
• Brinell 160-190 HB

• Heat Resistance
• Yes

• Material Composition %
• Chromium 18-20%, Nickel 8-10.5%, Carbon 0.08%, Manganese 2.0%.

• Material Grade
• 304

• Product Form
• Forged or Plate

• Product Name
• Other, 304 Stainless Steel Flange

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• As per requirement / standard sizes available

• Steel Product Type
• Other

• Steel Standard
• Other, ASTM A182 / ASME SA182

• Steel Type
• Stainless Steel

• Surface
• Smooth, Pickled or Polished

• Tensile Strength
• Minimum 515 MPa

• Thickness
• Generally 3 mm to 40 mm (customizable).

• Usage
• Pipe joining, sealing, and equipment connection in high corrosion environments.

• Weight
• Varies depending on size and thickness; e.g., a 4-inch flange is approximately 2.5 to 5 kg.

• Application
• Other, Industrial piping, chemical processing, oil & gas, food & beverage, pharmaceuticals

• Coating Type
• Uncoated

• Color
• Silver

• Composition
• Cr: 16-18%, Ni: 10-14%, Mo: 2-3%, C: 0.08%, Mn: 2%, Si: 1%

• Corrosion Resistant
• Yes, excellent resistance to corrosion in chloride environment

• Diameter
• 15 mm to 600 mm (customizable)

• Dimension (L*W*H)
• Varies as per design, commonly customized to standard flange dimensions

• Finish Type
• Smooth / Polished

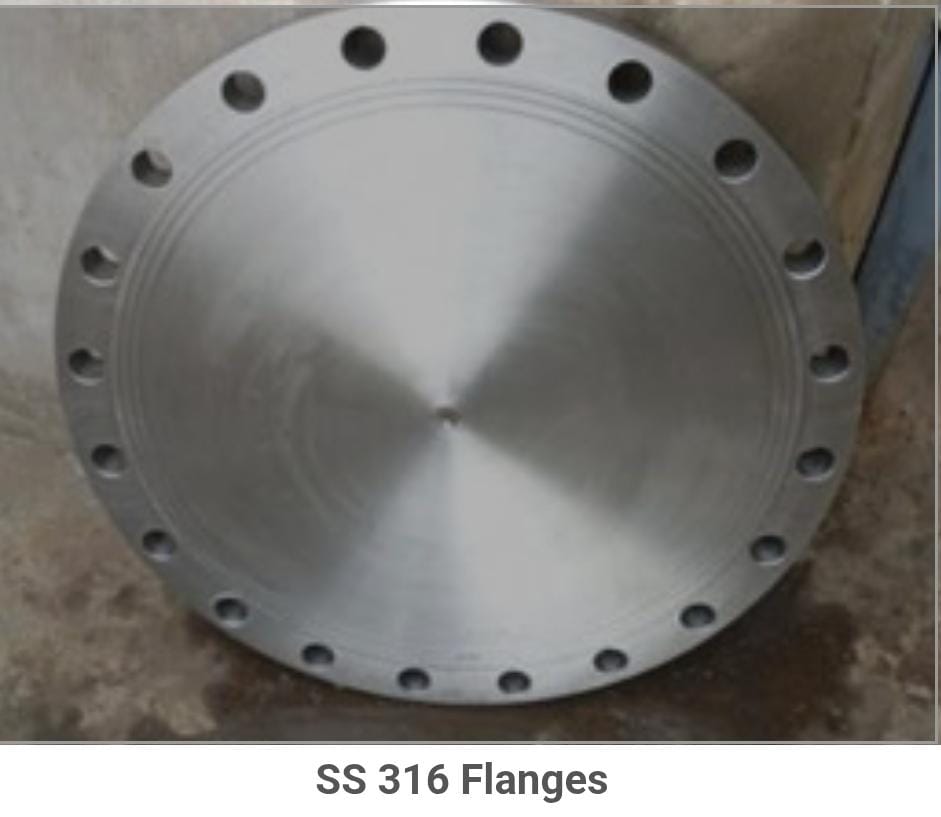

• Grade
• 316

• Hardness
• Rockwell B95 (max)

• Heat Resistance
• Yes

• Material Composition %
• Chromium 16-18%, Nickel 10-14%, Molybdenum 2-3%

• Material Grade
• 316

• Product Form
• Forged / Plate

• Product Name
• Other, 316 Stainless Steel Flange

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• ANSI, DIN, JIS, or customized

• Steel Product Type
• Other

• Steel Standard
• Other, ASTM A182 / ASME SA182

• Steel Type
• Stainless Steel

• Surface
• Polished or Mill Finish

• Tensile Strength
• 520 MPa min

• Thickness
• 3 mm to 50 mm (customizable)

• Usage
• Pipe joining, fluid control, high-pressure sealing applications

• Weight
• Depends on size, typically ranges from 0.5 kg to 10 kg per piece

• Application
• Other, Petrochemical, chemical processing, oil and gas, marine, food processing, pharmaceuticals, power generation

• Coating Type
• None / As requested

• Color
• Silver Grey

• Composition
• Cr 18-20%, Ni 11-15%, Mo 3-4%, Mn 2%, Si 1%, C 0.03%

• Corrosion Resistant
• Excellent (suitable for aggressive chemical environments)

• Diameter
• to 48 (or as per customer specifications)

• Dimension (L*W*H)
• Customized as per requirement

• Finish Type
• Machined / Polished / Custom

• Grade
• 317L

• Hardness
• Brinell 217 HB

• Heat Resistance
• Yes

• Material Composition %
• Chromium 18-20%, Nickel 11-15%, Molybdenum 3-4%

• Material Grade
• 317L

• Product Form
• Forged / Plate / Welded

• Product Name
• Other, 317L Stainless Steel Flange

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• Custom sizes available

• Steel Product Type
• Other, Flange

• Steel Standard
• Other, ASTM A182 / ASME SA182

• Steel Type
• Stainless Steel

• Surface
• Smooth / Polished / Mill finish

• Tensile Strength
• 515 MPa

• Thickness
• Range: 3 mm to 50 mm (as per design requirements)

• Usage
• Pipe connections, valves, fittings, pressure vessel systems

• Weight
• Varies by size and type
